Logic Analyzer 4032L Oscilloscope 32Channels Handheld Osciloscopio Automotive USB Oscilloscopes 2G Memory Depth

<p>This is a logic analyzer product with high cost performance. </p><p>Channels of digital signal could be sampled at the same time, and then they could be converted to digital waveform and displayed on the PC screen.</p><p>The signal could be analyzed with many standard protocols, to get more straightforward communication data.</p><p>It helps a lot in testing and analyzing digital system, developing and debugging several communication programs, or monitoring and recording some digital signals for a long time.</p><p>Excellent industrial design, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability</p>

• 4032L combines the function of logic analyzer,bus analyzer, and logic probe etc. in one.
• It's suitable for various digital circuits development, testing, analysis and debug, is an able aider for electronics development & electronic measuring engineers and teaching and research work at college
• It's 2Gbit memory depth (DDR2), 400MSa/s sampling rate, and 150MHz bandwidth can meet your various needs.
• 4032L combines the function of logic analyzer, bus analyzer, and logic probe etc. in one.
• It's suitable for various digital circuits development, testing, analysis and debug, is an able aider for electronics
• development & electronic measuring engineers and teaching and research work at college.
• It's 2Gbit memory depth (DDR2), 400MSa/s sampling rate, and 150MHz bandwidth can meet your various needs.
• The innovative trigger mode and new analysis measurement tool make your measurement simple and efficient.
• It can set edge, level, bus, data width etc. Trigger mode, easy to use.
• Its innovative data analysis function makes your analyze UART, SPI, and I2C etc. data more easy and relax.
• secondary analysis with other tools.
• and play high speed USB 2.0 interface.
• Excellent industrial design, similar interface to digital storage oscilloscope, easy to use.

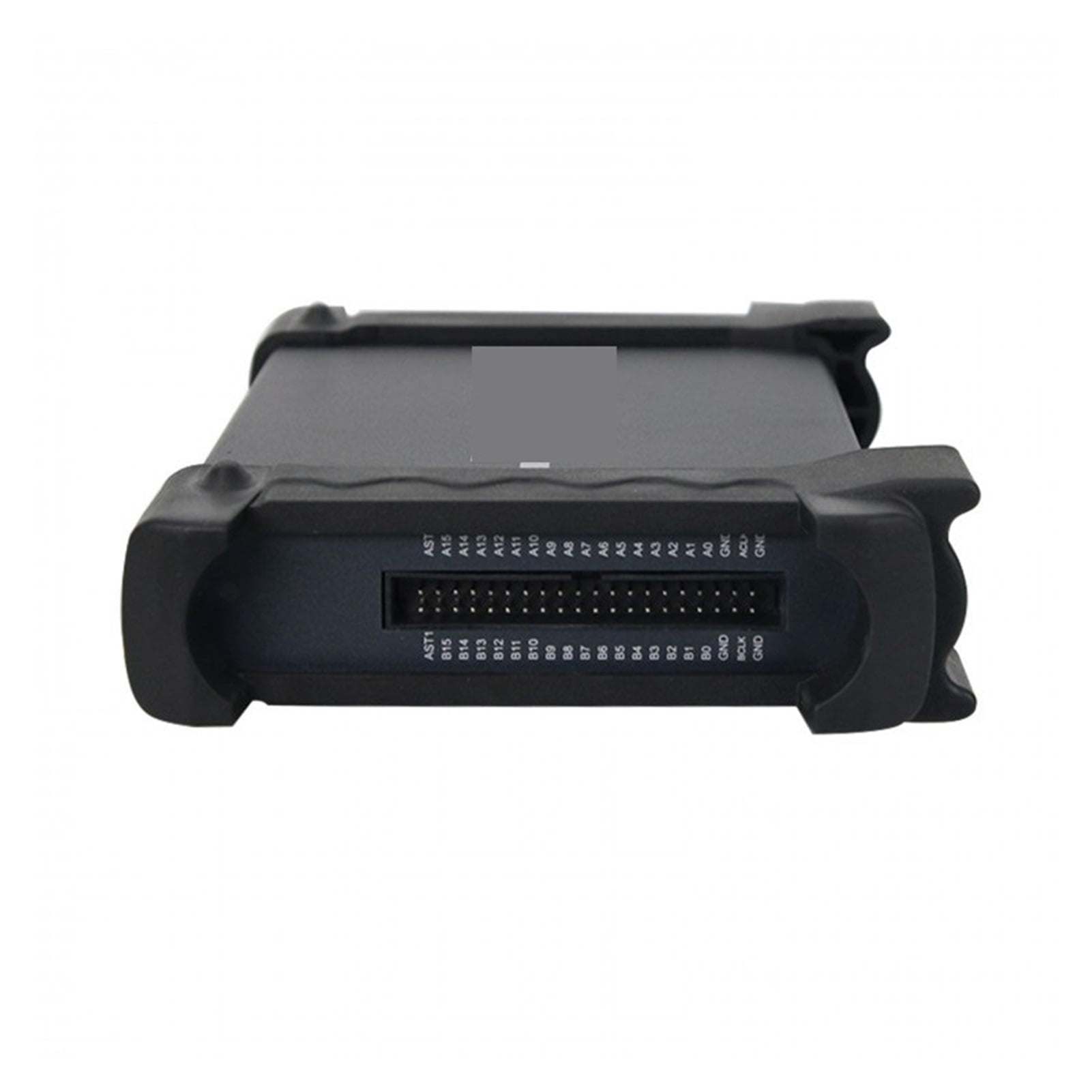

• Channel
• 32
• Input Impedance
• 200K(C=10p)
• Input Voltage Range
• -6V~60V
• Voltage Threshold Range
• -6V~6V
• Max. Sample Rate
• 400MHz
• Max. Input Signal Bandwidth
• 150MHz
• Min Time Resolution
• 2ns
• Sample Depth
• 64M Sample
• Memory Depth
• 2G bits
• Electrostatic Protected Area
• 15KV

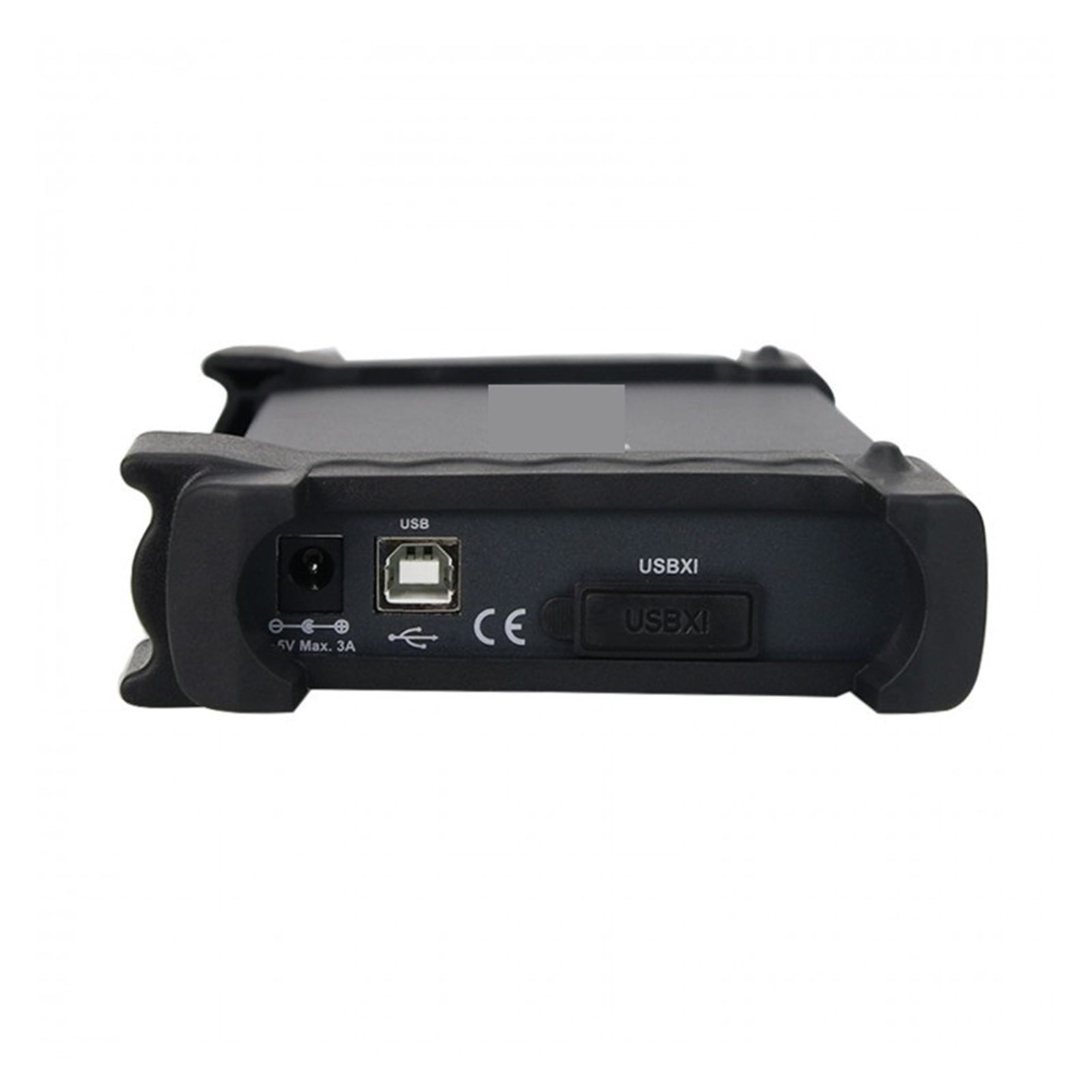

• Interface
• USB Port
• Voltage Range
• 4.5V~5.5V
• Power
• Max. 3.5W
• Temperature Range
• Operation: -10°C~60°C; Storage: -40°C~60°C
• Operating System
• WinXP/2000/Win7
• Size&Weight
• 207D x 37H x 123(W) mm, about 390g

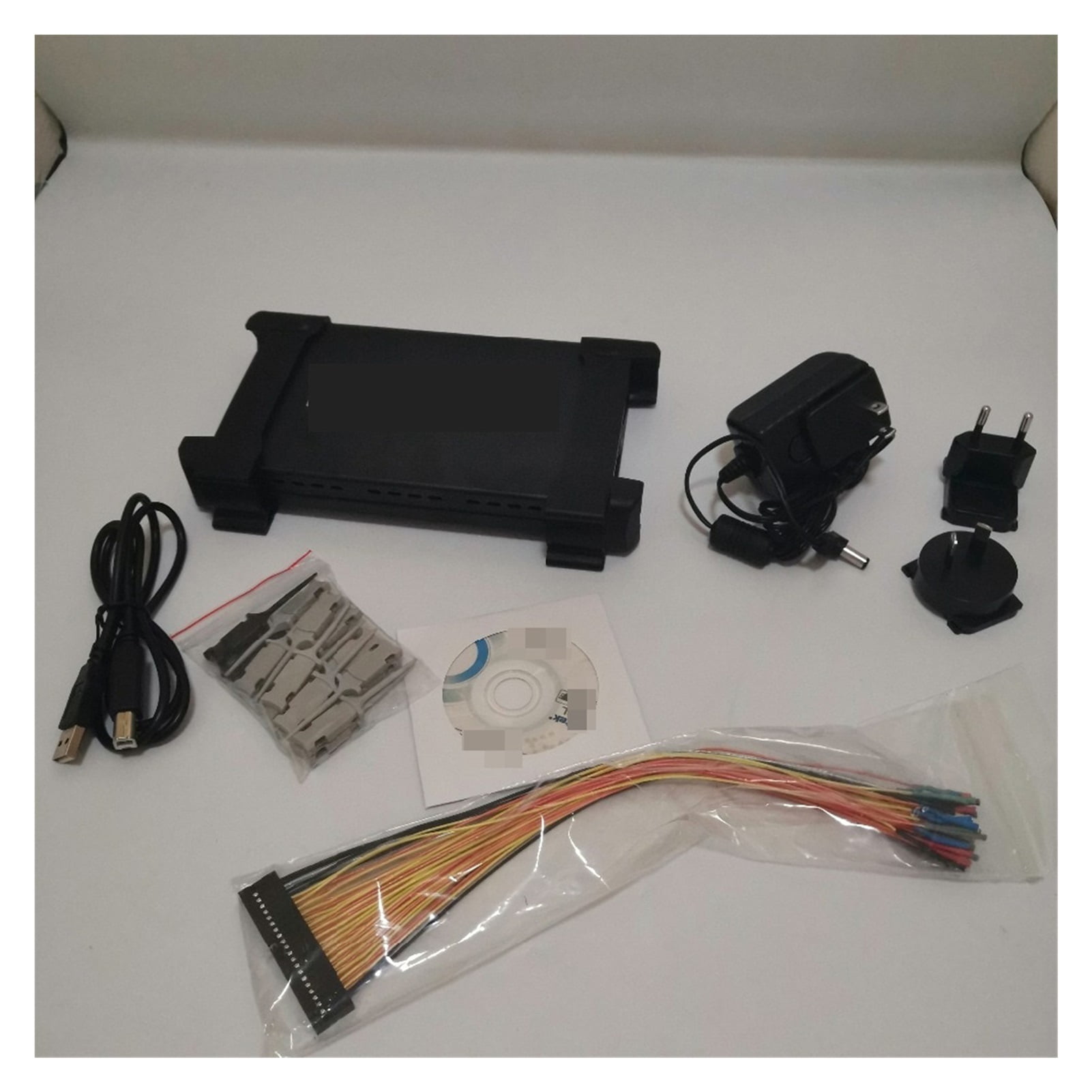

• Packing List:
• 1* PC USB logic analyzer
• 1*Cable
• 1*Test Hook
• 1*USB cord
• 1*Software CD
• 1*5V Power supply
